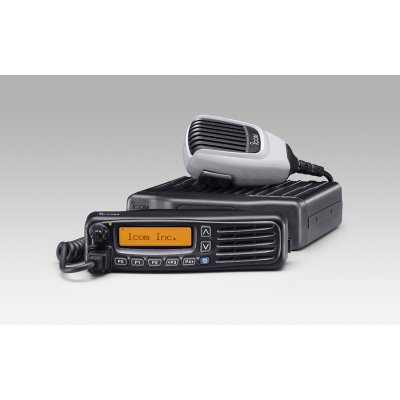

| GENERAL |
|
Frequency coverage |
136–174MHz |
|
Number of channels |
512 channels/128 zones |
|
Type of emission |
16K0F3E, 11K0F3E, 8K10F1E/D, 4K00F1E/D |
|
Channel spacing |
12.5/25kHz, 15/30kHz, 6.25kHz* (*digital) |
|
Power supply requirement |
13.6VDC nominal |
Current drain (approx.)
Tx High (50W/45W)
Rx Max. audio/Stand-by |
14A
1200mA/300mA |
|
Antenna impedance |
50Ω (SO-239) |
|
Operating temperature range |
–30°C to +60°C; –22°F to +140°F |
|
Dimensions (W×H×D) |
160×45×150 mm; 6.3×1.77×5.91 in |
|
Weight (approx.) |
1.3 kg; 2.9 lb |
| TRANSMITTER |
|
Output power (at 13.6V DC) |
50W, 25W, 0.5W (Hi, L2, L1) |
|
Max. frequency deviation |
± 5.0kHz/±2.5kHz (W/N) |
|
Frequency stability |
±1.0ppm |
|
Spurious emissions |
75dB typ. |
|
FM Hum and noise |
45/40dB typ. (Wide/Narrow) |
|
Audio harmonic distortion |
3% typ. (AF 1kHz 40% deviation) |
|
Modulation limiting |
70–100% of Max. deviation |
|
FSK error |
5.0% max. |
|
Ext. microphone impedance |
600Ω (8-pin modular) |
| RECEIVER |
Sensitivity (at 12dB SINAD)
(at 5% BER) |
0.25μV typ.
0.20μV typ |
|
Adjacent channel selectivity |
85/75dB typ. (Wide/Narrow) |
|
Spurious response rejection |
90dB typ. |
|
Intermodulation rejection |
77dB typ. |
|
Hum and noise |
50/45dB typ. (Wide/Narrow) |
|
Audio output power (4Ω load) |
4W typ. (at 5% distortion) |
|
Ext. speaker connector |
2-conductor 3.5 (d) mm (1⁄8ʺ)/4Ω |
| Ingress Protection Standard |
|
Dust & Water |
IP54 (Dust-protection and water resistant) |
